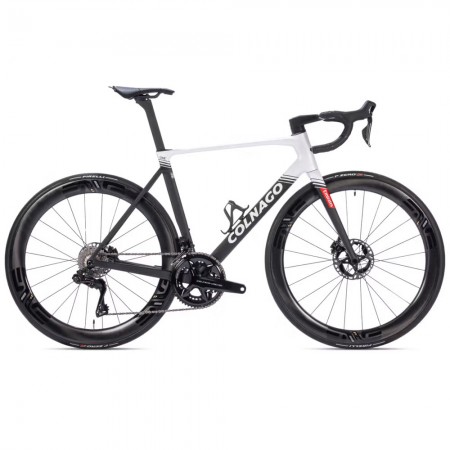

2025 Colnago V5Rs Disc Campagnolo Super Record Wireless Complete Bike
USD 8,700.00 USD 14,700.00
Product Description
2025 COLNAGO V5Rs DISC CAMPAGNOLO SUPER RECORD WIRELESS COMPLETE BIKE
THE NEW V5Rs
The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogačar and his team-mates.
To obtain a winning bike, several factors must be balanced. It's not just a question of lightness, but also of aerodynamics, responsiveness and handling. The V5Rs is the result of the perfect balance of these elements - all performed with a single objective: to win.
The lightest Colnago ever
The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity. Winning in total more than 146g compared to the V4Rs in size 485.
Thinner profiles
Narrow frontal area
The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube - now narrower - helps reduce air resistance and save watts.
Stiff and responsive
The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.
More precise steering
The V5Rs has a new fork that is lighter and more precise. The tyre clearance of 32 mm allows the use of wider tyres: more grip, better handling and speed on uneven terrain.
Absolute carbon quality.
Thanks to new lamination techniques, the arrangement of carbon fibres is studied and controlled in every area of the frame. The result is a lightweight, resistant and long-lasting structure.
The V5Rs has been designed to improve every aspect of riding: weight, aerodynamics, rigidity and handling, taking into account the real needs of racing. The only goal: to win.
SPECIFICATION :
| Frame kit Frame | Colnago V5Rs Monocoque carbon frame |
|---|---|
| Fork (material, section notes) | Carbon fork for disc brakes, integrated cables, Semi-Circular section. |
| Headset | 1"1/8 and 1"1/4 - SLT Treated Bearings |
| Seatpost | Standard Option
• Carbon seatpost, 15mm offset Sold separately • Carbon seatpost, 0 mm offset |
| Through axles | Diameter: 12 mm. length 100 mm (front) - 142 mm (rear) |
| Drivetrain Shifting system |
Campagnolo Super Record WRL (Wireless) DB 12 |
| Front derailleur | Campagnolo Super Record WRL - FD23-SR12WRL |
| Rear derailleur | Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL |
| Chain | Super Record WRL 12S |
| Chainrings | Option 1 (Default)
• 48-32T Option 2 • 45-29T |
| Cassette | Option 1 (Default)
• 10-27T Option 2 • 10-29T |
| Bottom bracket | BSA (English Threaded Bottom Bracket) Campagnolo |
| Crank length | Option 1 (Standard for sizes 420 - 485)
• 170 mm Option 2 (Standard for sizes 510 - 530) • 172.5 mm Option 3 (Standard for sizes 550 - 570) • 175 mm |
| Brakes Brakes |
Campagnolo Super Record WRL - Standard Flat Mount |
| Disc size | 160 mm Front/ 140 mm Rear |
| Brake lever | Campagnolo Ergopower DB Super Record WRL 12V |
| Brake caliper | Campagnolo Standard Flat Mount - Brake pads: DB310 |
| Wheels Wheels |
Bora Ultra WTO 45 Disc Brake |
| Material | H.U.L.C. carbon fiber UD with high resistance properties - C-Lux finishing |
| Rim height | 45 mm |
| Internal channel width | 21 mm |
| Hubs | Carbon Hubs
CULT™ ceramic bearings Integrated flanges |
| Through axles | Front: HH12-100 - Rear: HH12-142 |
| Tyres | Enve WS SES 3.4 C
• Pirelli PZero Race TLR 700x28 Shimano Dura Ace C50 • Pirelli PZero Race 700x28 Fulcrum Wind 420 DB • Pirelli PZero Race 700x28 Fulcrum Racing 600 DB • Pirelli P7 Sport 700x28 |
| Maximum tyre size | 32 mm (nominal width) |
| Components Saddle |
Scratch M5 Nack 140 Hard Black Selle Italia SLR Boost Superflow Carbon Rail (subject to stock availability) |
| Handlebar | Colnago CC.01 integrated Cockpit - regular geometry. |
| Stem | CC01 integrated cockpit |
| Handlebar Tape | Colnago Grip Black or Colnago WT23 (for WT24 color scheme only) |
| Bottle cage | Colnago Matt Black (1x) |
| Other accessories | - |
