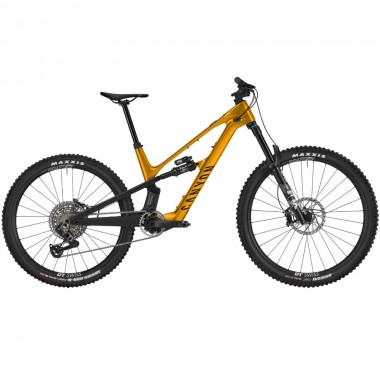

2025 Canyon Spectral:ONfly CF CLLCTV Mountain Bike

0 reviews

USD 4,500.00 -41%

Brand: Canyon

Product Code: CY994724

Availability: In Stock

Viewed 5958 times

Available Options

Size

Color

Qty

Add to wishlist
Add to compare

Tags: Canyon 2025 Canyon Mountain Bike 2025

Categories Cart Account Search Recent View

Description
Reviews (0)

Product Description

2025 CANYON SPECTRAL:ONFLY CF CLLCTV MOUNTAIN BIKE

Flyweight e-MTB carbon chassis

They say you can’t build a featherlight e-MTB that can tackle any terrain. Clearly, “they” haven’t met the Spectral:ONfly, which boasts a 2.7kg carbon frame (size M) that shrugs off whatever you throw its way. Charge with confidence, thanks to trail-tough components and the bike’s plush 160/150mm of front and rear-suspension travel.

Smooth, silent, revolutionary

We’ve paired the lightest, smoothest and most silent drive unit available to the Spectral:ONfly’s cutting-edge, carbon chassis. Weighing an astonishingly lightweight 1,850g, TQ’s HPR50 motor is small enough to fit in the palm of your hand yet doubles your own pedalling power by cranking out an impressive 50Nm of torque and 300W of peak support. It all adds up to an e-MTB that boasts playful handling, stunning looks, and the power to nab more descents and rail more corners than you’ve ever imagined possible.

Go light, go far

The Spectral:ONfly is powered by a lightweight (1,830g) 360Wh battery. We’ve fully integrated that battery within the frame to create the lightest, strongest, and sleekest chassis possible. Though tiny, the TQ’s battery is mighty—letting you nab an impressive 1,000m of elevation gain on a single charge. Want to ride further still? You can quickly and easily add the optional 160Wh TQ Range Extender and boost your range by 44%.

Playful yet capable

The Spectral:ONfly’s trail-taming capabilities come courtesy of progressive geometry inspired by our award-winning Spectral CF trail bikes. The slack 64-degree headtube, long reach, 440mm chainstays and steep 76.5-degree seat tube instil confidence at speed and help you maintain composure on climbs. The bike’s mullet wheelsize setup levels up agility and control: a 29er front wheel boosts rollover and traction, while the smaller 27.5 rear wheel improves agility and butt-to-tire clearance on steep descents.

More room to get rowdy

When it came to maximising this bike’s manoeuvrability, no detail was too small for our engineers. Case in point, each Spectral:ONfly boasts a super-short seat tube and extra-long dropper posts. This lets you slam the saddle on steep and sketchy descents for more control. Our wide-diameter (34.9mm) dropper posts are uber-durable. What’s more you can easily adjust the amount of available saddle drop by up to 25mm to achieve your perfect fit and function.

Hardcore hardware

The Spectral:ONfly is built to last. Since servicing frame pivot bearings is, frankly, a drag, we’ve equipped the bike with double-sealed bearings filled with proprietary, wash-resistant bearing grease. When it eventually comes time to service your frame’s pivot bearings, we’ve reduced the risk of wrenching mishaps with our innovative, replaceable thread inserts. Brilliant.

SPECIFICATION

FRAME	Frame • Canyon Spectral:ONfly CF Axle dimension: 12x148 mm Material: Carbon (CF) Weight: 2.70 kg Rear Shock • Fox Float x Performance 230x60 mm Weight: 500 g Suspension Fork • Fox 38 Performance Elite 160mm 29 Axle dimension: 15x110 mm Stanchion Diameter: 38 mm Travel: 160 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm Weight: 2.46 kg
DRIVETRAIN	Motor • TQ HPR 50 Motor Battery • SRAM Powerpack Battery • TQ HPR Battery Rear Derailleur • SRAM GX Eagle AXS Transmission Weight: 462 g Chainguard • Canyon GP0480-01 Chain Guide Shift Lever • SRAM AXS Pod Weight: 67 g Cassette • SRAM XS-1275 Eagle Transmission Number of sprockets: 12 Range: 10-52 Crank • FSA CK-745/IS Armset Chainring • SRAM XX Eagle Transmission DM E-MTB Chainring
BRAKES	Disc Brake • SRAM Code Silver Stealth Number of pistons: 4 Disc Brake • SRAM Code Silver Stealth Number of pistons: 4 Brake Rotor • SRAM HS2 Size: 200 mm Weight: 300 g
WHEELS	Wheel • DT Swiss HX1700 Axle dimension: 15x110 mm Rotor mount: Center Lock Rim height: 21 mm Inner width: 30 mm Rim material: Aluminium Weight: 997 g Wheel • DT Swiss HX 1700 Spline LS Axle dimension: 12x148 mm Rotor mount: Center Lock Inner width: 30 mm Weight: 1.11 kg Tyre • Maxxis Assegai Width: 2.5" Weight: 1.07 kg Tyre • Maxxis Minion DHR II 3C MaxxTerra EXO+ 2,4x27,5" Width: 2.4" Weight: 1.00 kg Thru Axle • Canyon Quixle Trough Axle QR 148x12 Axle dimension: 12x148 mm
COCKPIT	Stem • Canyon:ON ST0031 Canyon E-MTB stem. Length: 45 mm Fork steer tube diameter: 1 1/8" Clamping diameter: 35,0 mm Handlebar • Canyon:ON HB0057 Riser bar Canyon-developed E-MTB handlebar for top control levels on the trail. Clamping diameter: 35,0 mm Width: 780 mm Rise: 30 mm Grips • Canyon Lock-On
SEAT	Saddle • Fizik Terra Aidon X5 Gender: Unisex Weight: 251 g Seatpost • Canyon SP0070-01 Air cartridge. Cable actuated. Travel: Dependent on frame size (see component geometry table.) Clamp diameter: 34,9 mm Material: Aluminium (AL) Weight: 34 g
ACCESSORIES	Pedals • Iridium VP-536 Manuals and Accessories • Canyon Organza Bag Manuals and Accessories • Wrench Tool 15mm Manuals and Accessories • CAYN Assembly Paste Red 5g Manuals and Accessories • Canyon Instruction SRAM eTap AXS Manuals and Accessories • CAYN Drybag w paper belly band Manuals and Accessories • Canyon Torque Wrench Manuals and Accessories • Declaration of confirmity M095 Manuals and Accessories • QSG M095 Manuals and Accessories • Pedelec Handbuch 005-V04 Manuals and Accessories • Canyon Smallbox Manuals and Accessories • Canyon Shock Pump 300 Psi Manuals and Accessories • Canyon Shock Pump 300 Psi
