Product Description

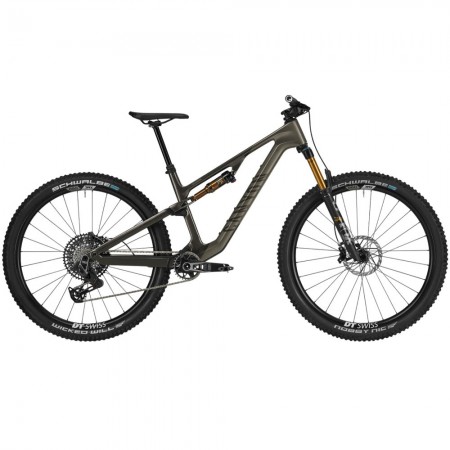

2025 CANYON NEURON CF 9 MOUNTAIN BIKE
Intuitive handling
The Neuron impresses with its intuitive handling and inspires you to confidently set off for new horizons. It sits quietly on the trail and smoothly insulates you from impacts so you can go with the flow.
Geometry & wheels
Stability and control in technical terrain and on trails, a capable and confidence inspiring geometry for the Neuron on 29er Wheels (M- XL) and smaller wheels for smaller riders (650B on XS and S):66° Head Tube angle, 76° Seat Tube Angle, 455mm Reach (Size M). For more details check out the geometry table.
Triple Phase Suspension
The Neuron AL is equipped with Triple Phase Suspension that ensures optimal control during your ride. The leverage curve features small bump sensitivity at the start for incredible traction. Mid-stroke stability delivers speed and momentum to push through compressions and jump over features. On bigger hits, the suspension ramps up progressively to avoid bottoming out making for an overall smoother and more comfortable ride.
Integrated chainstay protection and chain guide
Thanks to the integrated chain guide, your chain will stay secure while riding tough trails, giving you peace of mind while you focus on the ride. The bike also boasts a chainstay protector that eliminates annoying chain slap noises while protecting the rear triangle. The noise-dampening rubber compound of the chainstay protector reduces unnecessary noise while riding. Both the guide and protectors are adjustable to suit various chainring sizes ranging from 28-34T for greater flexibility depending on your ride style.
Clean and simple internal cable routing
The Neuron CF has been designed with clean and simple internal cable routing, providing a sleek and tidy look. However, it isn't just about aesthetics as pre-installed internal guides make cable installation a breeze. Pushing the cable through the guides makes installation quick and straightforward. The design minimizes any internal bending and protects the cables from debris and mud. Additionally, all entry points have been expertly sealed, providing extra protection from dirt and grime during rides.
Ready to drop
All Neuron bikes come with a dropper post as standard letting you thread the needle on technical trails. In 2023 we shrank the seat tube by 20 mm, allowing you to run longer-travel dropper posts so that all riders can get their saddle low and well out of the way.
Quick-release through axle
With the Quixle through-axle system, the Neuron AL provides riders with the best of both worlds. The Quixle delivers the stiffness and improved handling of a through axle setup while also providing the easy removal and install of a quick release. The handle tucks away neatly for tool-free removal, adding to its versatility and making it an ideal choice for those who prioritize speed and convenience.
SPECIFICATION
| FRAME | Frame
• Canyon Neuron Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort. Axle dimension: 12x148 mm Material: Carbon (CF) Weight: 2.46 kg Rear Shock • Fox Float Factory Suspension Fork • Fox 34 Factory Axle dimension: 15x110 mm Stanchion Diameter: 34 mm Travel: 140 mm Fork steer tube diameter: 1 1/8" - 1,5" |
|---|---|
| DRIVETRAIN | Battery
• SRAM Powerpack Rear Derailleur • SRAM X0 Eagle AXS Transmission Weight: 34 g Chainguard • Canyon EP1538-01 Chain Guide Shift Lever • SRAM AXS Pod Weight: 67 g Cassette • SRAM XS-1275 Number of sprockets: 12 Range: 10-52 Crank • SRAM X0 crank Number of chainrings: 1 Bottom bracket • SRAM DUB BSA Bottom bracket standard: BSA 73 Weight: 78 g Chain • SRAM GX Eagle Transmission |
| BRAKES | Disc Brake
• SRAM Code Silver Stealth Number of pistons: 4 Disc Brake • SRAM Code Silver Stealth Number of pistons: 4 Brake Rotor • SRAM HS2 Rounded Size: 180 mm Weight: 212 g |
| WHEELS | Wheel
• DT Swiss XMC1700 Axle dimension: 15x110 mm Rotor mount: Center Lock Inner width: 30 mm Weight: 843 g Wheel • DT Swiss XMC 1700 Spline Axle dimension: 12x148 mm Tyre • Schwalbe Nobby Nic 29x2.4 black skin Width: 2.4" Tyre • Schwalbe Wicked Will 29"x2.4" Width: 2.4" Thru Axle • Canyon Quixle Trough Axle QR 148x12 Axle dimension: 12x148 mm |
| COCKPIT | Stem
• Race Face Turbine R Fork steer tube diameter: 1 1/8" Clamping diameter: 35,0 mm Handlebar • Race Face Turbine Clamping diameter: 35,0 mm Width: 760 mm Rise: 20 mm Grips • Ergon GE10 Evo Slim |
| SEAT | Saddle
• Ergon SM10 Enduro Gender: Unisex Weight: 314 g Seatpost • Canyon G5 Clamp diameter: 30,9 mm Material: Aluminium (AL) Seat Clamp • Canyon G5 |
| ACCESSORIES | Pedals
• None included Manuals and Accessories • Canyon Organza Bag Manuals and Accessories • CAYN Assembly Paste Red 5g Manuals and Accessories • Canyon Instruction SRAM eTap AXS Manuals and Accessories • CAYN Drybag w paper belly band Manuals and Accessories • Canyon Smallbox Manuals and Accessories • Canyon Torque Wrench Manuals and Accessories • QSG 001-V02 MTB generic Manuals and Accessories • Quickstart Guide Neuron CF Manuals and Accessories • Canyon Shock Pump 300 Psi Manuals and Accessories • Canyon Shock Pump 300 Psi |
