Product Description

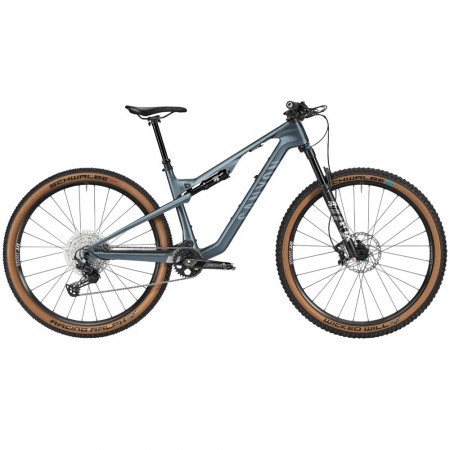

2025 CANYON LUX TRAIL CF 6 MOUNTAIN BIKE
Total control linkage
Get brilliant traction and control with the Lux Trail's reactive suspension. 115 mm of rear travel is just a number, when you point it downhill it rides like a whole lot more.
The right angles
We've found the sweetspot for trail riding geometry. Steep enough seat tubes that keep you riding efficiently and comfortably all day long. And a slack enough head angle that puts you in the driving seat on long and challenging descents.
Remote lockout suspension
Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.
Proper frame protection
Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.
Clever storage
The fix is always within reach on the Lux Trail. Store a mini-tool in the top tube and Canyon Sahmurai Sword Plug Set in the bar ends for fast fixes. Sold separately
Drink more water
Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.
SPECIFICATION
| FRAME | Frame
• Canyon Lux Trail CF A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3. Axle dimension: 12x148 mm Material: Carbon (CF) Rear Shock • FOX Float SL Performance Elite Remote Weight: 280 g Suspension Fork • FOX 34 Stepcast Performance 3-Pos Remote Axle dimension: 15x110 mm Stanchion Diameter: 34 mm Travel: 120 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm Volume Spacer Oe: 1 Weight: 1.64 kg |
|---|---|
| DRIVETRAIN | Rear Derailleur
• Shimano Deore M6100 Cage length: long Weight: 354 g Shift Lever • Shimano Deore M6100 Weight: 136 g Cassette • Shimano Deore M6100 Number of sprockets: 12 Range: 10-51 12S Crank • Shimano Deore M6120 Number of chainrings: 1 Bottom bracket • Token BSA Bottom bracket standard: BSA 68/73 Weight: 98 g Chain • Shimano CN-M6100 |
| BRAKES | Disc Brake
• Shimano SLX M7120 Number of pistons: 4 Disc Brake • Shimano SLX M7110 Number of pistons: 2 Brake Rotor • Shimano RT66 160 Size: 160 mm Weight: 110 g Brake Rotor • Shimano RT66 180 Size: 180 mm Weight: 140 g |
| WHEELS | Wheel
• DT Swiss AM LN 370 Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Weight: 1.05 kg Wheel • DT Swiss AM LN 370 Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Weight: 1.17 kg Tyre • Schwalbe Racing Ralph SG TLE EVO 2.35" Width: 2.35" Weight: 750 g Tyre • Schwalbe Wicked Will SR TLE EVO 2.4" Width: 2.4" Weight: 818 g Thru Axle • Canyon Quixle Through Axle QR 148x12 Axle dimension: 12x148 mm |
| COCKPIT | Stem
• Race Face Ride Fork steer tube diameter: 1 1/8" Clamping diameter: 35,0 mm Handlebar • Race Face Ride Riserbar Clamping diameter: 35,0 mm Width: 760 mm Rise: 10 mm Grips • Ergon GXR |
| SEAT | Saddle
• Ergon SM10 Sport Gender: Male Weight: 305 g Seatpost • FOX Transfer SL Performance Elite Clamp diameter: 31,6 mm Material: Aluminium (AL) Weight: 437 g Seat Clamp • Canyon G5 |
| ACCESSORIES | Pedals
• None included Manuals and Accessories • Canyon Organza Bag Manuals and Accessories • CAYN Assembly Paste Red 5g Manuals and Accessories • CAYN Drybag w paper belly band Manuals and Accessories • Canyon Smallbox Manuals and Accessories • Canyon Torque Wrench Manuals and Accessories • Quick Start Guide Manuals and Accessories • Canyon Shock Pump 300 Psi Manuals and Accessories • Canyon Shock Pump 300 Psi |
