Product Description

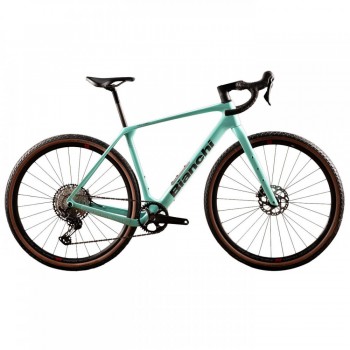

2025 Bianchi Arcadex Comp Grx Carbon Gravel Bike
Nature amplified
The Arcadex gravel bike perfectly combines an emotional communion with nature, and the exhilarating rush of Bianchi racing DNA. It delivers distinct performance for the modern gravel rider.
The sculpted carbon fibre frame is incredibly responsive, so the Arcadex is primed to perform as soon as you push on the pedals – whether riding to explore, or indulging your competitive spirit. Take off-road capability, combine it with the speed and aesthetics you love about your road bike, then you have the Arcadex. With clearance for 700×45 or 650×47 tires, it’s for those who want to ride gravel, faster.
Features of the Bianchi Arcadex Comp Carbon Gravel Bike
Gravel -specific, aerodynamic geometry- Aerodynamic carbon frame and fork
- Slim, integrated cockpit
- Flatmount disc brakes
- Additional storage compartment in down tube
Velomann components
SPECIFICATION :
| FRAME | Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: |
|---|---|
| FORK | Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite |
| HEADSET | Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal |
| SHIFTERS | Sram Apex D1 |
| REAR DERAILLEUR | Sram Apex Eagle Maximum Cassette Sprocket 52T |
| CRANKSET | Sram Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) |
| BOTTOM BRACKET | Sram DUB PressFit Road Wide 86.5 X Ø41 |
| CHAIN | Sram SX Eagle |
| CASSETTE | Sram SX Eagle, PG-1210 11-50T Driver Body Interface: HG11 |
| BRAKES | Sram APEX Pad Type: Steel-Backed Organic |
| ROTOR | Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear) |
| WHEELS | Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm |
| TIRE | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
| STEM | Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61) |
| HANDLEBAR | Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61) |
| GRIPS | Bianchi Hexagon tape 2.5mm thickness, Full black |
| SEATPOST | Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61) |
| SADDLE | Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm |
