2024 Canyon Torque CF CLLCTV FW Mountain Bike
Your shopping cart is empty!
Product Description

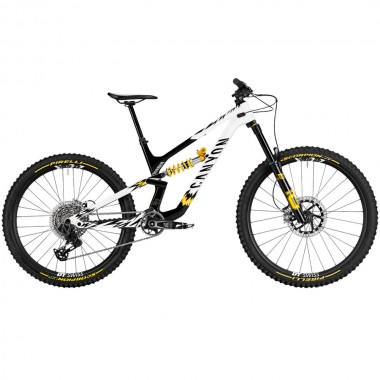

2024 CANYON TORQUE CF CLLCTV FW MOUNTAIN BIKE
Mullet wheel sizing
Named after the cult-status 1980s haircut, mullet mountain bikes combine the benefits of both wheel sizes on one bike. Just like the hairstyle, they’re all about business at the front, and party at the back. A front 29-inch wheel takes care of the hard work, with its incredible rollover and massive traction. At the back, a smaller 27.5” wheel is super-agile, ready to get the party started at the jump line.
Adjustable frame geometry
If you want to take the Torque’s incredible versatility to an even higher level, you can adjust the frame geometry using the flip chip located at the seatstays. Pick between two positions: LO and HI. We ship the Torque in LO setting. When you turn the chip by 180 degrees, the head tube angle and seat tube angle get 0.5° steeper (64° and 78° respectively), and the bottom bracket height increases by 8 mm, for more ground clearance and direct handling.
Fabio’s bike, Fabio’s components
It goes without saying that on the Torque CF Fabio Wibmer, we exclusively fit components that Fabio uses on his own bike, and that carry his signature design touch. These include an ergonomic SQlab cockpit – comprising a 3OX carbon bar and 8OX aluminium stem – and powerful Magura MT7 brakes, easily one of the best sets of stoppers for gravity riding on the market. We round out the setup with a comfortable SQlab 611 Ergowave saddle.
SPECIFICATION
| FRAME | Frame
• Canyon Torque CF Axle dimension: 12x148 mm Material: Carbon (CF) Rear Shock • Öhlins TTX22M Spring: 388 Suspension Fork • Öhlins RXF38 Axle dimension: 15x110 mm Stanchion Diameter: 38 mm Travel: 170 mm Fork steer tube diameter: 1 1/8" - 1,5" Weight: 2.32 kg |
|---|---|
| DRIVETRAIN | Battery
• SRAM Powerpack Rear Derailleur • SRAM X0 Eagle AXS Transmission Weight: 34 g Chainguard • Canyon EP1266-01 ISCG05 Plate Chainguard • Canyon GP0293-02 Shift Lever • SRAM Eagle AXS Controller Cassette • SRAM XS-1275 Eagle Transmission Number of sprockets: 12 Range: 10-52 Crank • SRAM XO Eagle Number of chainrings: 1 Bottom bracket • SRAM DUB BSA Bottom bracket standard: BSA 73 Weight: 78 g Chain • SRAM GX Eagle Transmission |
| BRAKES | Disc Brake
• Magura MT7 Disc Brake • Magura MT7 Brake Rotor • Magura MDR-P Size: 203 mm Weight: 183 g Brake Rotor • Magura MDR-P Size: 220 mm Weight: 241 g |
| WHEELS | Wheel
• DT Swiss FR1700 Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Weight: 940 g Wheel • DT Swiss FR1700 Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Weight: 988 g Tyre • Pirelli Scorpion Race Endruo M Width: 2.5" Weight: 1.30 kg Tyre • Pirelli Scorpion Race Enduro T Width: 2.5" Weight: 1.18 kg Thru Axle • Canyon Quixle Trough Axle QR 148x12 Axle dimension: 12x148 mm |
| COCKPIT | Stem
• Canyon G5 Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Fork steer tube diameter: 1 1/8" Clamping diameter: 31,8 mm Material: Aluminium (AL) Handlebar • Canyon G5 G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Clamping diameter: 31,8 mm Width: 780 mm Rise: 30 mm Grips • Canyon G5 |
| SEAT | Saddle
• Ergon SM10 Enduro Gender: Unisex Weight: 314 g Seatpost • Canyon G5 Clamp diameter: 30,9 mm Material: Aluminium (AL) Seat Clamp • Canyon G5 |
| ACCESSORIES | Pedals
• None included Manuals and Accessories • Canyon Organza Bag Manuals and Accessories • CAYN Assembly Paste Red 5g Manuals and Accessories • CAYN Drybag w paper belly band Manuals and Accessories • Canyon Smallbox Manuals and Accessories • Canyon Torque Wrench Manuals and Accessories • Canyon Shock Pump 300 Psi Manuals and Accessories • Canyon Shock Pump 300 Psi |
