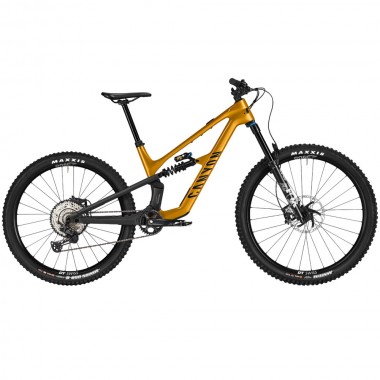

2024 Canyon Spectral CF 8 CLLCTV Mountain Bike

2024 Canyon Spectral CF 8 CLLCTV Mountain Bike

$ 1,950.00
Brand:
Product Code: CY994686
Availability: In Stock
Viewed 523 times

Available Options

Product Description

2024 CANYON SPECTRAL CF 8 CLLCTV MOUNTAIN BIKE

Next generation carbon chassis

The most complete, capable trail bike we've ever made. Our latest Spectral CF carbon frame is engineered around a 150mm fork and 140mm rear travel for that perfect all rounder setup. The all-new design and one-piece rocker link deliver 'just right' levels of stiffness and class-leading performance whether tackling alpine epics or laps of your local trails.

Internal downtube storage

Pack everything you might need in the spacious downtube storage. The storage lid’s knee-lever mechanism creates benchmark clamping security, with a fiddle-free, lightweight action that even the coldest, muddiest hands can operate.

Flip chip to flip wheelsize

Ride your Spectral your way. Pick your favourite wheelsize and know you can swap your wheels out to run full 29er or mullet (mullet only on XS). The chainstay flip chip lets you easily swap wheelsizes whenever you want so no more being locked into one wheelsize.

Trail taming kinematics

Our engineers have maximised performance from this 140mm setup. An updated leverage curve and reduced pedal kick back deliver smoother more sensitive suspension performance boosting traction and composure on the trail without losing any of the Spectral's trademark support and 'pop'.

Maintenance made easy

Make repairs a cinch when the time comes with fully guided internal routing and tubing connecting the cable ports at the headtube with those in the seat stay. Our replaceable thread inserts, double-sealed bearings, and proprietary grease fill deliver industry-leading durability.

Adjustable Geometry

A 64° head tube angle, 76.5° seat tube angle, roomy reach and tight chainstays balance playfulness and performance for that modern trail bike feel. For riders after extra pedal clearance and slow speed poise, a flip chip steepens the angles by 0.5° and raises the BB by 8mm.


SPECIFICATION :

Frame Canyon Spectral CF Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength. Axle dimension: 12x148 mm Material: Carbon (CF)
Rear Shock FOX DHX Factory Spring: 350
Suspension Fork FOX 36 Performance Elite Axle dimension: 15x110 mm Stanchion Diameter: 36 mm Travel: 150 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm Weight: 2.35 kg
Rear Derailleur Shimano DEORE XT M8100 Cage length: long Weight: 286 g
Chainguard Canyon EP1266-01 ISCG05 Plate
Chainguard Canyon GP0293-02
Shift Lever Shimano DEORE XT M8100 Weight: 130 g
Cassette Shimano SLX M7100 Number of sprockets: 12
Crank Shimano SLX M7120 Number of chainrings: 1
Bottom bracket Shimano BSA BB52 Bottom bracket standard: BSA HT2 68/73 Weight: 98 g
Chain Shimano CN-M6100
Disc Brake Shimano DEORE XT M8120 Number of pistons: 4
Disc Brake Shimano DEORE XT M8120 Number of pistons: 4
Brake Rotor Shimano SM-RT76 Size: 203 mm Weight: 190 g
Wheel DT Swiss E1900 Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Weight: 1.12 kg
Wheel DT Swiss E1900 Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Weight: 1.00 kg
Tyre Maxxis Assegai Width: 2.5" Weight: 1.02 kg
Tyre Maxxis Minion DHR II Exo+ Width: 2,4" Weight: 1.08 kg
Thru Axle Canyon GP0254-01 Thru Axle 148X12 Axle dimension: 12x148 mm
Stem Canyon G5 Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Fork steer tube diameter: 1 1/8" Clamping diameter: 31,8 mm Material: Aluminium (AL)
Handlebar Canyon G5 G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Clamping diameter: 31,8 mm Width: 780 mm Rise: 30 mm
Grips Canyon G5
Saddle Ergon SM10 Enduro Comp Gender: Unisex Weight: 265 g
Seatpost Canyon SP0070-01 Air cartridge. Cable actuated. Travel: Dependent on frame size (see component geometry table.) Clamp diameter: 34,9 mm Material: Aluminium (AL) Weight: 680 g
Light Reflector Set
Pedals None included
Manuals and Accessories Canyon Organza Bag
Manuals and Accessories Canyon Smallbox
Manuals and Accessories Canyon Quick Start Guide
